Chapter 8 — Tools and Accessories
This chapter provides a comprehensive reference for the tools, accessories, and consumables required for the installation, commissioning, maintenance, and troubleshooting of surface water monitoring stations. It includes a complete accessories list with specifications, quantities, and sourcing guidance, as well as a recommended tool kit for field technicians.
8.1 Accessories List
The accessories list below covers all hardware items required for a standard Type B cabinet station installation. Quantities are given per station and may need to be adjusted based on the specific site conditions, cable run lengths, and number of sensors. The image below provides a visual reference for all 16 standard accessories.

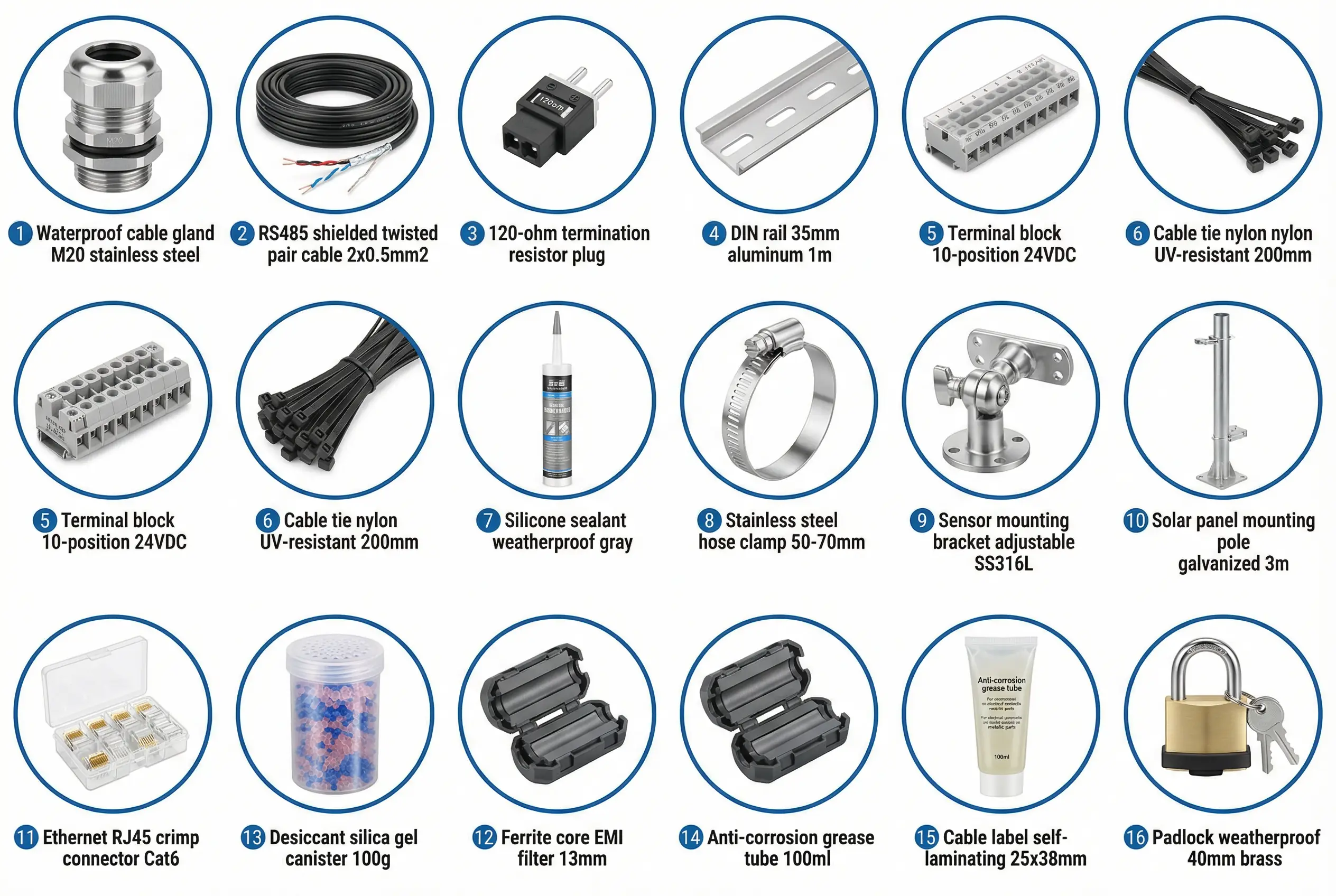

Figure 8.1: Complete accessories catalog — 16 standard accessories for surface water monitoring station installation, including cable glands, RS485 cable, termination resistors, DIN rail, terminal blocks, cable ties, sealant, hose clamps, mounting brackets, solar pole, RJ45 connectors, ferrite cores, desiccant, anti-corrosion grease, cable labels, and padlock
| # | Accessory Name | Specification | Qty per Station | Material | Purpose |
|---|---|---|---|---|---|
| 1 | Waterproof Cable Gland | M20, IP68, clamping range 6-12 mm | 8-12 | SS316L or nylon PA66 | Cable entry sealing for cabinet |
| 2 | RS485 Shielded Cable | 2 x 0.5 mm2 STP, 300 V, -40 to +80 C | 50-200 m | Tinned copper, PVC jacket | Sensor to RTU RS485 wiring |
| 3 | Termination Resistor Plug | 120 ohm, 0.25 W, RJ45 or screw terminal | 2 | Metal film resistor | RS485 bus termination at both ends |
| 4 | DIN Rail | 35 mm x 7.5 mm, 1 m length, slotted | 2-4 | Aluminum alloy | Component mounting in cabinet |
| 5 | Terminal Block | 10-position, 24 VDC, 10 A, 2.5 mm2 | 4-8 strips | PA66, tin-plated copper | Field cable termination |
| 6 | Cable Tie | 200 mm x 3.6 mm, UV-resistant, black | 100 | Nylon 66 UV-stabilized | Cable management and bundling |
| 7 | Silicone Sealant | Weatherproof, -60 to +200 C, gray | 2 tubes | RTV silicone | Sealing cable glands and conduit entries |
| 8 | Stainless Steel Hose Clamp | 50-70 mm diameter range, worm drive | 4-8 | SS304 | Securing sensor cables to mounting poles |
| 9 | Sensor Mounting Bracket | Adjustable angle, 50 mm pipe clamp | 2-4 | SS316L | Mounting sensors to bank or pier structure |
| 10 | Solar Panel Mounting Pole | Galvanized steel, 3 m, 60 mm OD, with base flange | 1 | Hot-dip galvanized steel | Solar panel and antenna support |
| 11 | Ethernet RJ45 Connector | Cat6, shielded, crimp type, with boot | 20 | Gold-plated contacts | Ethernet cable termination |
| 12 | Ferrite Core EMI Filter | 13 mm ID, snap-on, 25-300 MHz | 6-10 | Mn-Zn ferrite | EMI suppression on sensor cables |
| 13 | Desiccant Silica Gel Canister | 100 g, indicating type (blue to pink) | 2 | Silica gel | Moisture control inside cabinet |
| 14 | Anti-Corrosion Grease | 100 ml tube, dielectric, -40 to +150 C | 1 | Petroleum-based or silicone | Protecting electrical connections from corrosion |
| 15 | Cable Label | Self-laminating, 25 x 38 mm, printable | 50 | Polyester with acrylic adhesive | Cable identification and documentation |
| 16 | Padlock | 40 mm shackle, weatherproof, keyed alike | 2 | Brass body, stainless shackle | Cabinet and sensor housing security |
8.2 Recommended Field Tool Kit
The field tool kit is the set of tools that a technician must carry to perform installation, commissioning, routine maintenance, and emergency troubleshooting at a monitoring station. The kit is organized into five functional categories: electrical tools, mechanical tools, measurement instruments, communications tools, and safety equipment.
| Category | Tool | Specification | Purpose |
|---|---|---|---|
| Electrical | Digital multimeter | True RMS, CAT III 600 V, with temperature probe | Voltage, current, resistance, continuity testing |
| Electrical | RS485 bus analyzer | Modbus RTU/ASCII/TCP, USB powered | Modbus communication diagnostics |
| Electrical | Insulation resistance tester | 500/1000 VDC, 0.1 MOhm to 2 GOhm | Cable insulation testing before energization |
| Electrical | RJ45 crimp tool and cable tester | Cat5e/Cat6 compatible | Ethernet cable termination and testing |
| Mechanical | Torque screwdriver set | 0.1-5 Nm, Phillips and flat heads | Terminal block and connector tightening to spec |
| Mechanical | Adjustable spanner and hex key set | Metric and imperial | Mounting bracket and sensor installation |
| Measurement | Portable water quality meter | pH, DO, EC, temperature; NIST-traceable calibration | Field verification of sensor readings |
| Measurement | Turbidity standard kit | 0, 100, 1000 NTU NIST-traceable standards | Turbidity sensor calibration and verification |
| Communications | Laptop with configuration software | Windows 10/11, with RTU and gateway config tools | Device configuration, firmware update, diagnostics |
| Safety | Personal flotation device (PFD) | ISO 12402-5, 100 N buoyancy | Mandatory for work near water |
